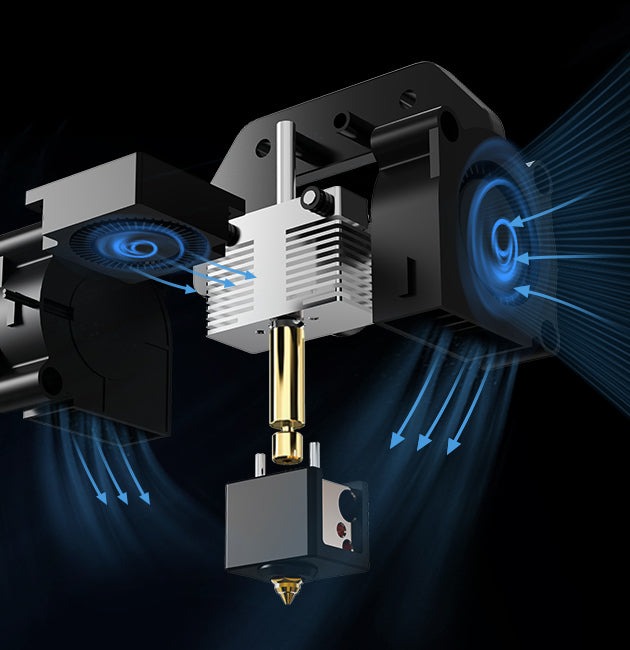

Potent Extrusion & Upgraded Hotend

The printer's dual-gear direct drive extruder is another key feature that ensures smooth and consistent extrusion, weighing only 75% of the Neptune 3 Pro.

The 5.2:1 reduction ratio and dual-gear design ensure a firm grip on the filament and prevent the flexible filament from slipping and grinding. The copper-titanium bi-metal throat pipe has a unique air duct design for faster heat dissipation of the throat pipe and less nozzle clogging.

The 300°C high-temp nozzle features an extended hotend design to fully melt the filament, allowing you to explore a wider range of materials, such as PLA, PETG, ABS, ASA, TPU, and high-temp filaments like nylon.

(Tips: ABS and ASA filament materials are recommended to be used in conjunction with a 3D Printer Enclosure.)

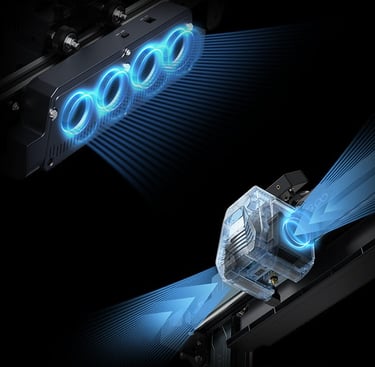

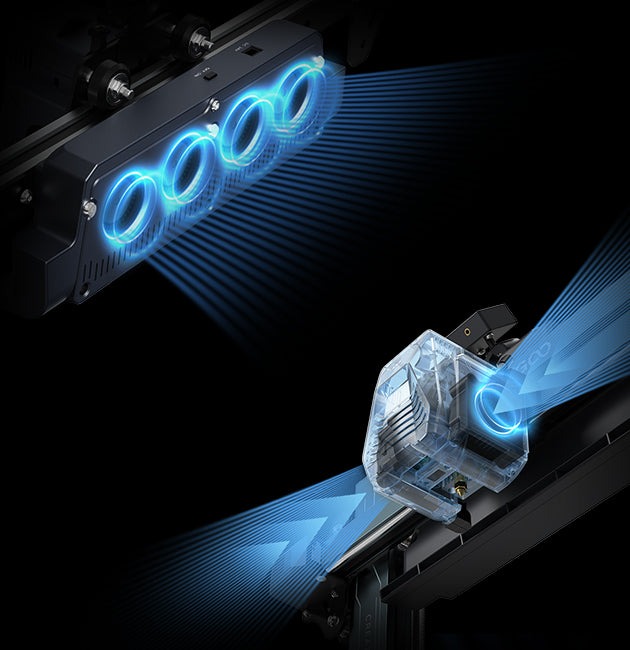

Unparalleled Heat Dissipation Performance

In addition to the two thickened 4015 ball bearing cooling fans on both sides of the print head, there are four 4020 ball bearing auxiliary fans behind the print head, which ensure omnidirectional rapid cooling of the newly printed layers even at a fast printing speed, and the deposited hot filament quickly bonds together for better overhang and bridge results.

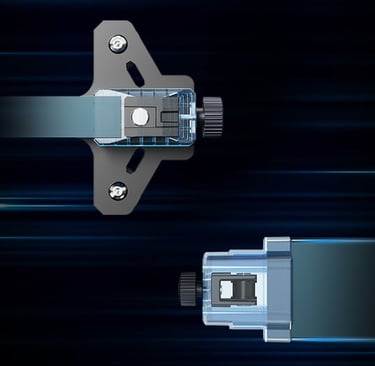

Stable & Quiet Printing

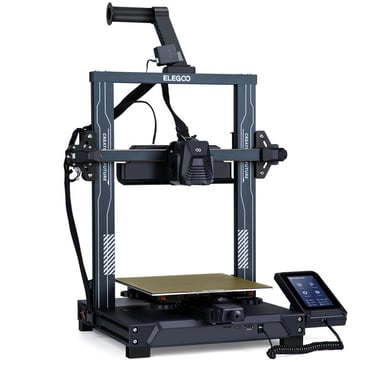

The ELEGOO Neptune 4 Pro 3D printer is designed for quiet and precise printing with its silent drivers for all axes, reducing noise to below 50 dB. Its wear-resistant POM V-guide wheels move quietly, smoothly, and accurately.

The Z-axis dual lead screw + Z-axis dual motor design provides better synchronization, increasing the accuracy and stability of the print head movement.

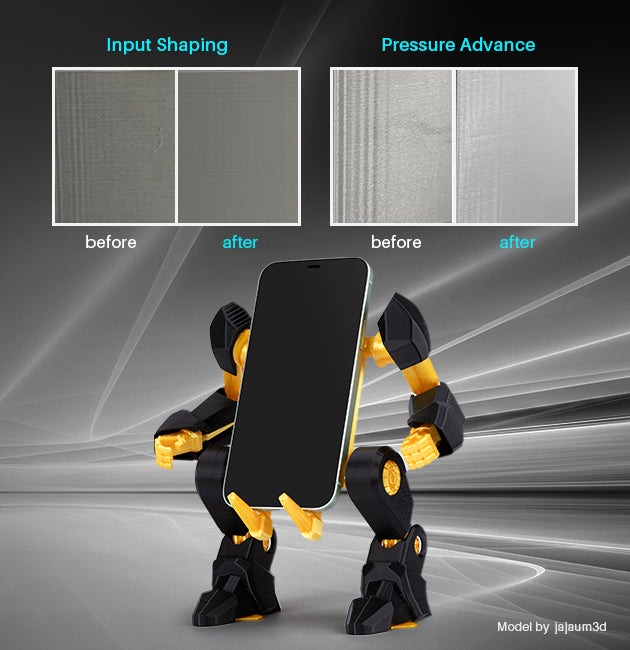

Smoother Model Surface

Support for advanced functions like input shaping and pressure advance helps achieve a smooth model surface and consistent extrusion.

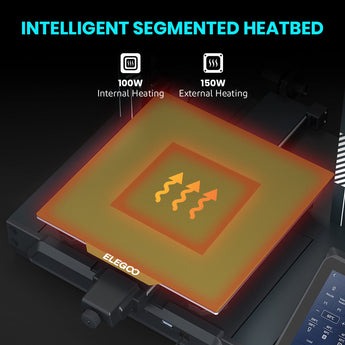

Intelligent Segmented Heatbed

With a power output of 100W + 150W, the slicing software automatically recognizes the size of the model during slicing and activates the peripheral heating zone if the model size exceeds the center heating zone (120 mm x 120 mm).

The two partitions can also be turned on and off manually for more precise temperature control.

Additionally, the surface of the PEI magnetic platform is marked for guidance.
